Laser systems

Lasers have found a very wide area of applications and laser systems are offered in hundreds of different types. Inframet manufactures equipment for testing several types of laser systems: laser range finders, laser designators, laser pointers/illuminators, laser receivers (laser communication receivers, laser seekers, laser trackers), thermal infrared lasers and high energy lasers (HELs).

Laser range finder LRF is a measuring device that uses alaserbeam to measure thedistanceto a target; typically using time of flightprinciple. Laser designators are high power pulsed lasers used to designate target of interest to be detected by a machine system. Laser pointer/illuminator is a device that uses laser beam to indicate/illuminate target of interest to be detected by humans. Laser directional receivers are devices that work as receiver blocks of laser seekers, laser communication systems or laser trackers having a task to detect a target emitting pulsed laser light. Thermal infrared lasers are lasers operating in long wavelength spectral range (thermal infrared) from about 2 μm to 15 μm. High Energy Lasers are lasers that emit high power CW laser beam for use in both industrial and defense applications.

Inframet offers a long series of stations optimized for testing different groups of laser systems:
a) Laser ranger finders: LUNI, LTE, LTF, LAS, LJT120 , LATRA, LIS, LMOB, LBOR, LBAND, LDIR
b) Laser designators: LUNI, LTE, LBOR, LDIR
c) Laser pointers/illuminators/dazlers: LIP, L411, LDIR
d)Laser directional receivers/seekers/trackers: L64,LAR64,
e) Thermal infrared lasers: LTIR,
f)High Energy Lasers: LAHEL.

LUNI LTE

LMOB
LTF
LJT120 LATRA
LIS LAS
LBOR L64
LIP LTIR
LBAND L411
LAHEL LDIR

LAR64 LAFELD
LWAL
Table 1. Basic descriptions of offered stations for testing laser systems
Code Basic description Test capabilities

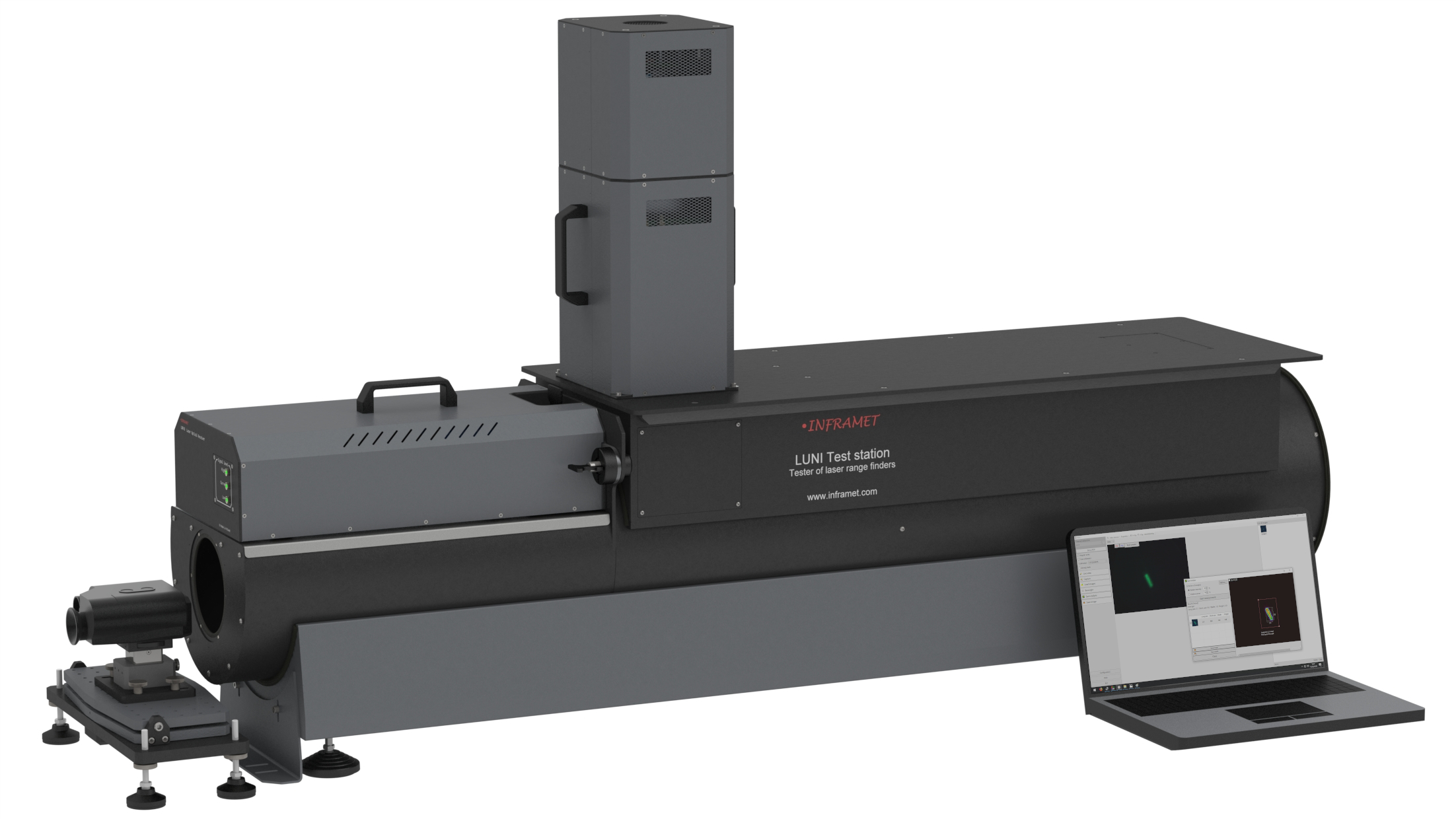

LUNI Universal station for expanded testing of laser range finders. New design offered from 2020. Pulse energy, pulse width, pulse frequency, beam divergence, receiver sensitivity, distance accuracy, Extinction Ratio,max operational range boresight errors

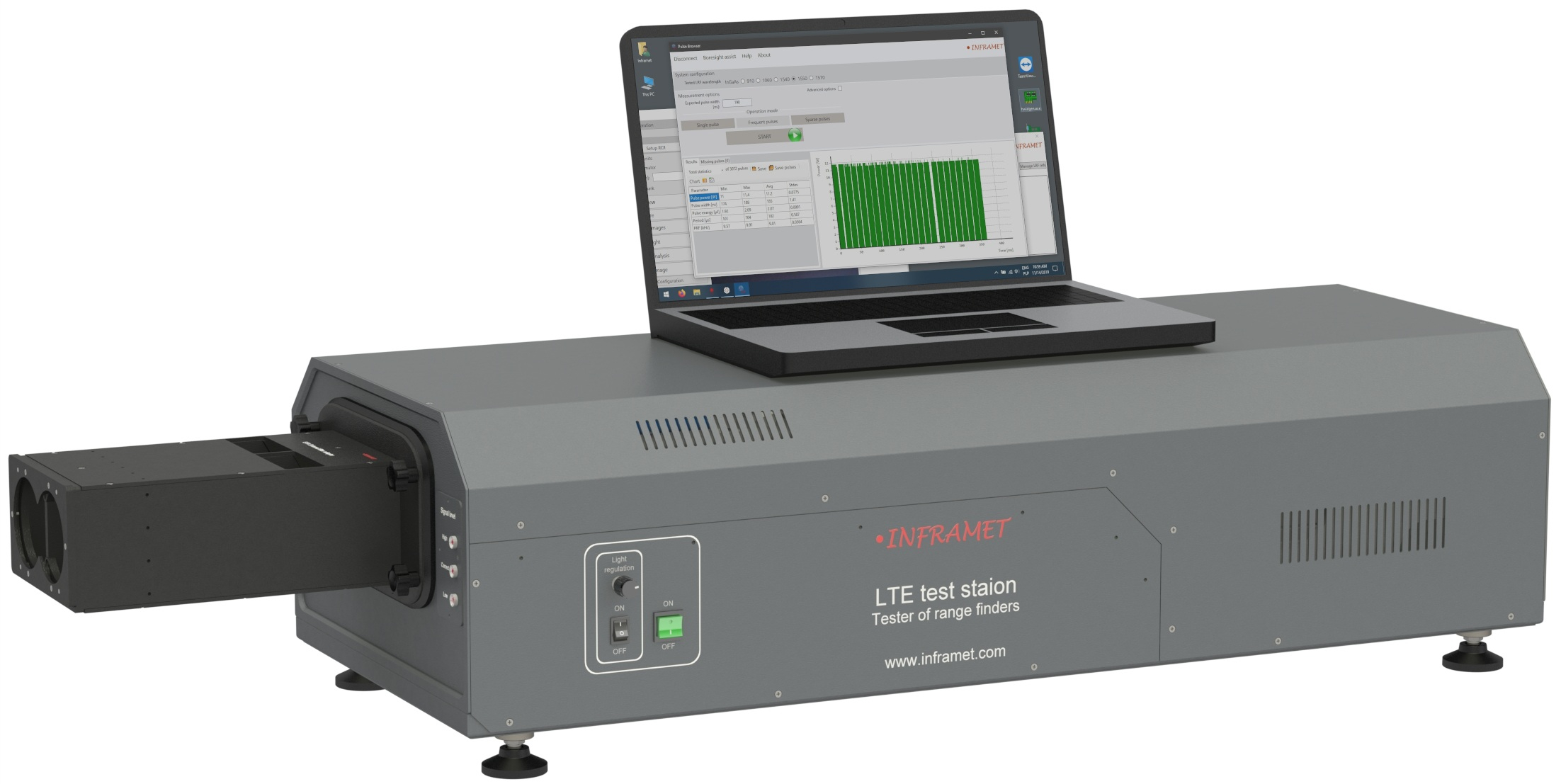

LTE Semi-automatic station for expanded testing of laser range finders. Mature design offered from about 2010. Pulse energy, pulse width,pulse frequency, beam divergence, receiver sensitivity, distance accuracy, Extinction Ratio,max operational range boresight errors
LTF Simple reliable station for final quality control Extinction Ratio, distance accuracy, max operational distance, distance discrimination (option), checking boresight

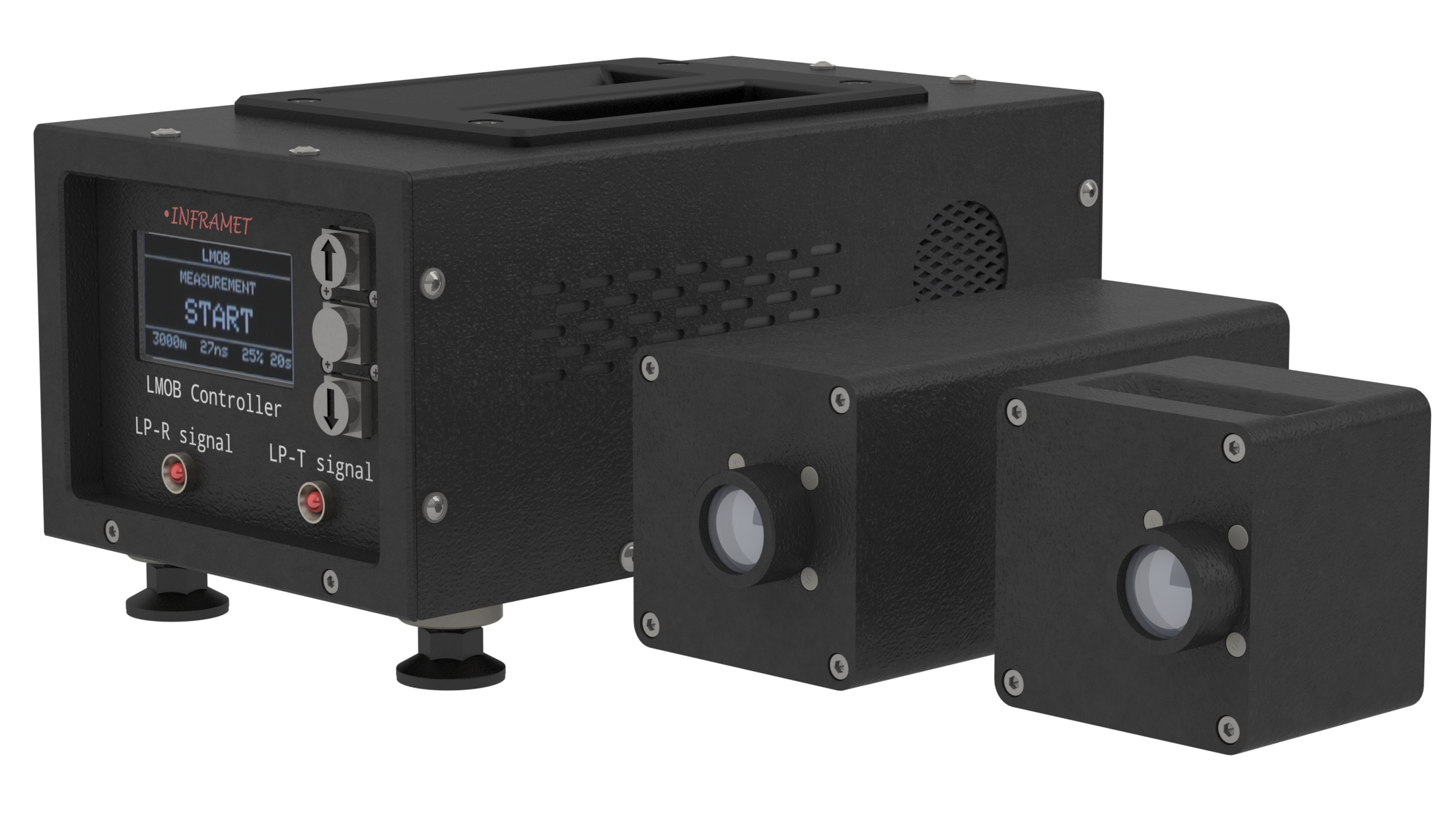

LMOB

Variable distance simulator for testing receivers electronics of laser range finders

 Distance measurement accuracy

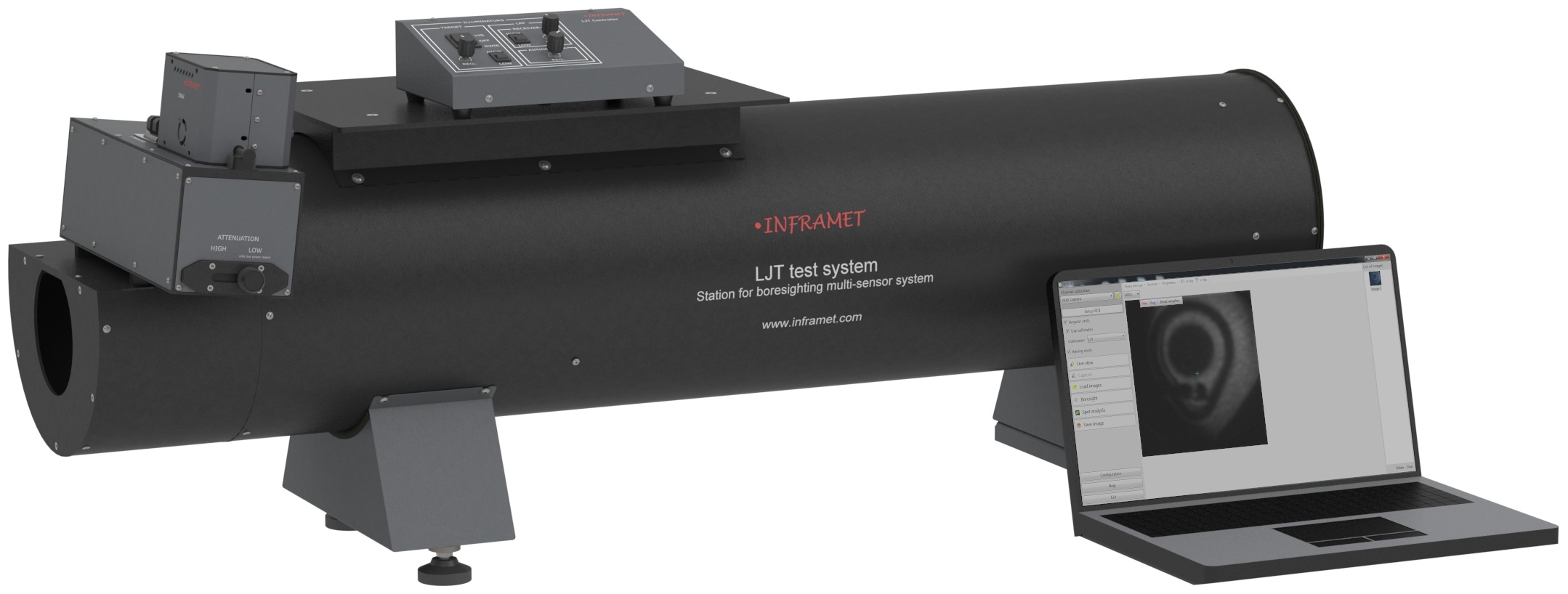

LJT 120

Excellent tool for fast easy boresight of LRFs for manufacturers, integrators or repair workshops

boresight transmitter/ receiver/ aiming channel
LATRA

Moderate cost station that offers the same boresight capabilities as LJT120 at slightly lower test speed

boresight transmitter/ receiver/ aiming channel
LIS LIS station can be considered as a highly simplified version of LTE station. The station is optimized to test
a specific type of LRF but its buyer can define parameters of LRF to be tested.
LAS System to enable measurement of operational range or ER extinction ratio of LRFs at field conditions Operational range,extinction ratio ER, support for recalibration of laboratory stations

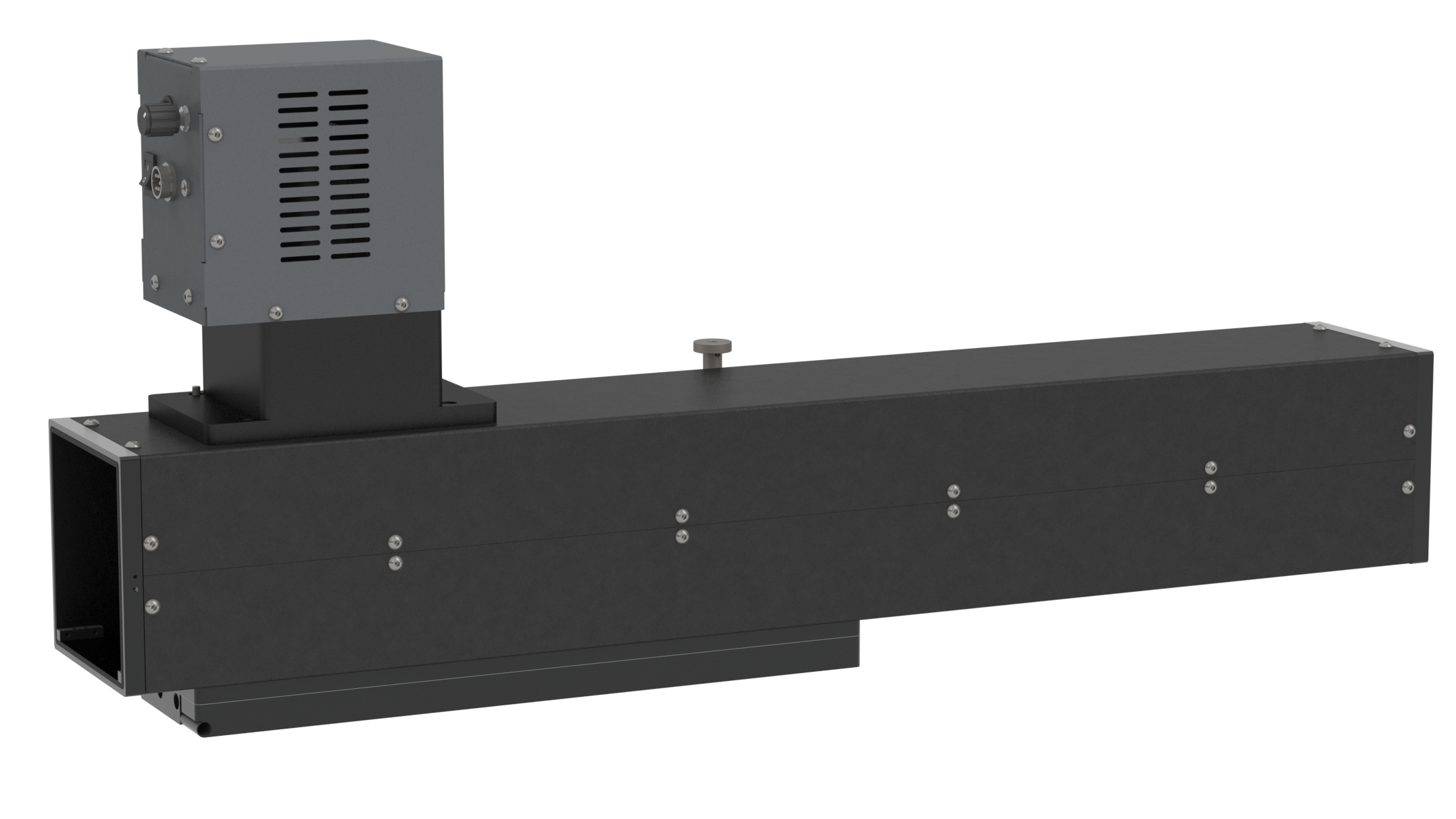

LBOR

Portable boresight tester of transmitters of laser range finders to be aligned with optical sights or VIS-NIR video cameras

 Boresight errors

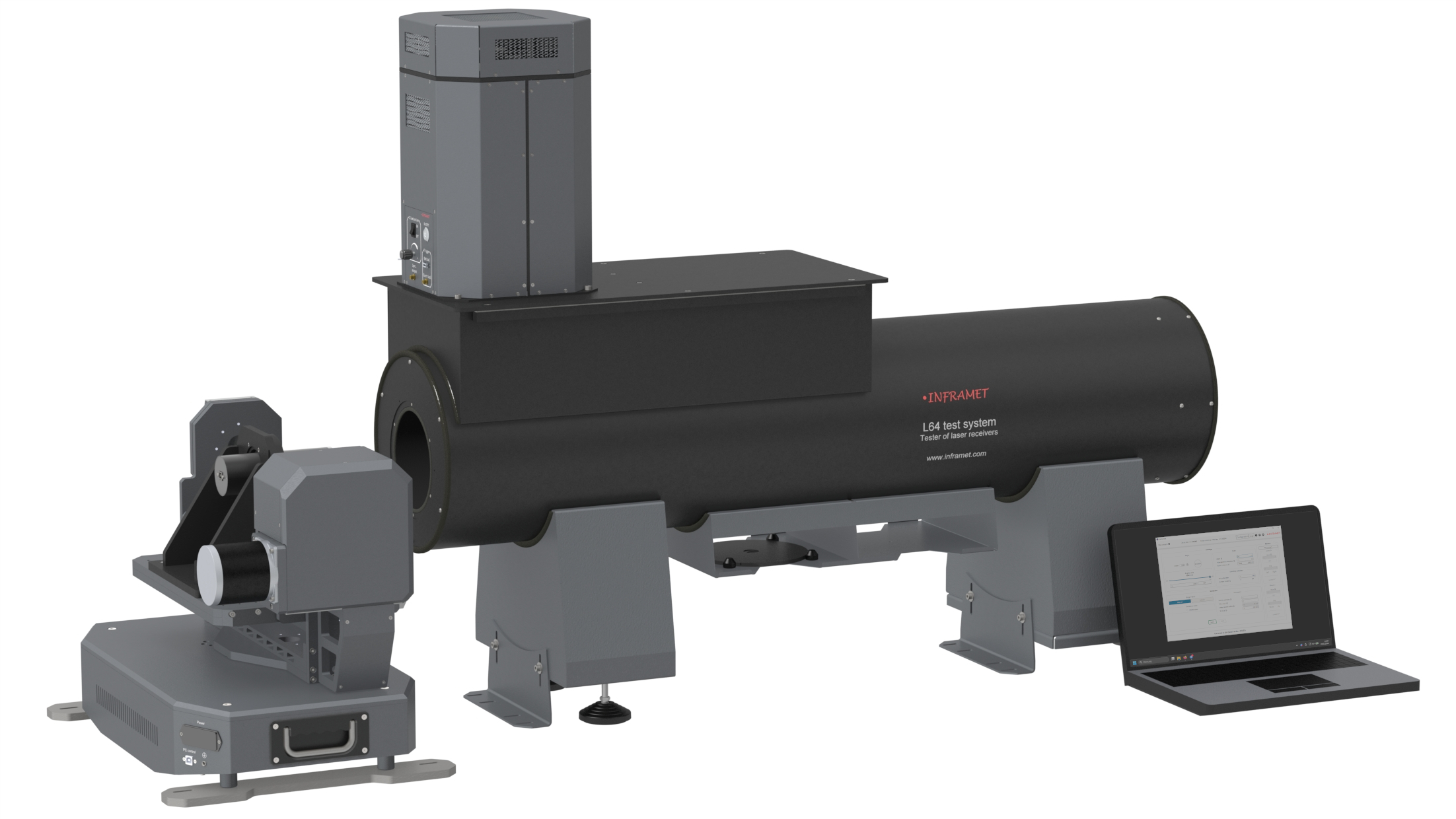

L64 Station for testing laser receivers (including laser seekers) and laser trackers Checking reactions to a simulated pulsed laser source of regulated properties
LIP Advanced station for testing laser pointers/illuminators/dazzlers Power, divergence angle,uniformity of laser pointers/illuminators

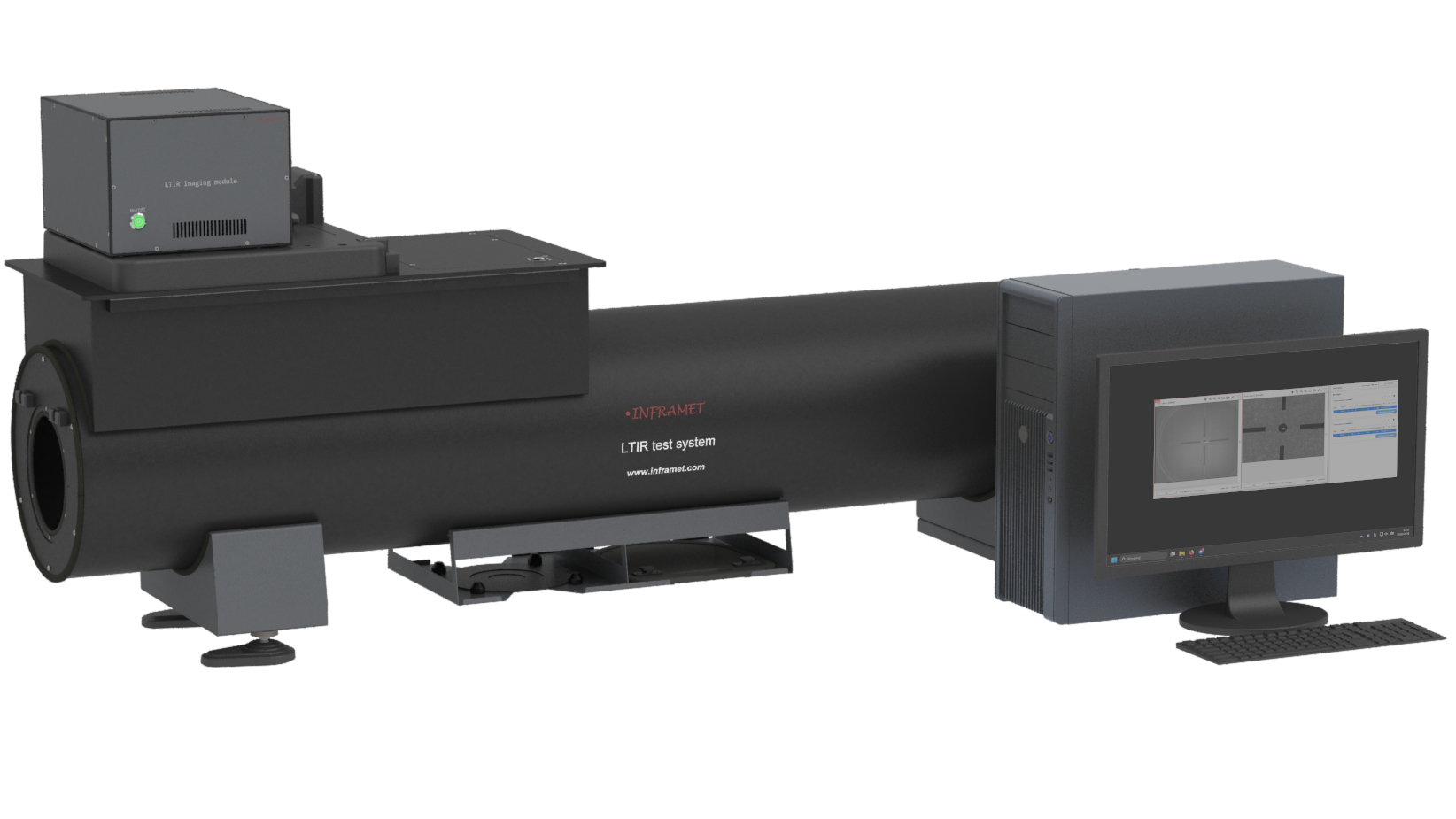

LTIR Professional system for testing and boresight of thermal infrared lasers. Ultra accurate measurement of divergence angle, temporal and spatial stability

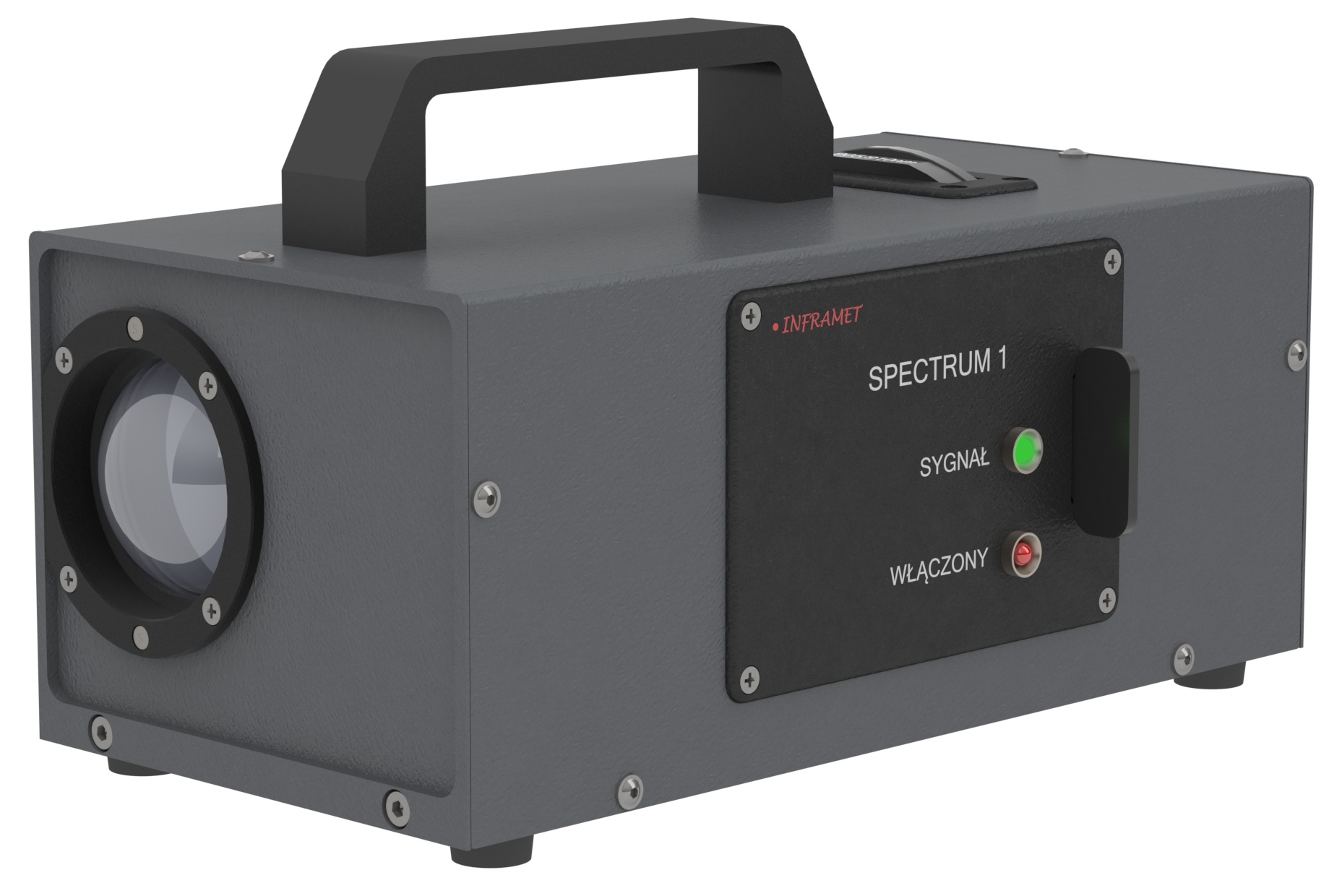

LBAND Simple checker of spectral band of tested LRF/designator Determines spectral band of tested LRF/designator
L411 Tool for spectral tests of laser pointers/illuminators Measures spectral intensity curve of tested laser pointer/illuminator
LAHEL System for testing high energy lasers (HELs) for both industrial and defense applications Measurement of spatial light intensity (divergence angle) and optical power

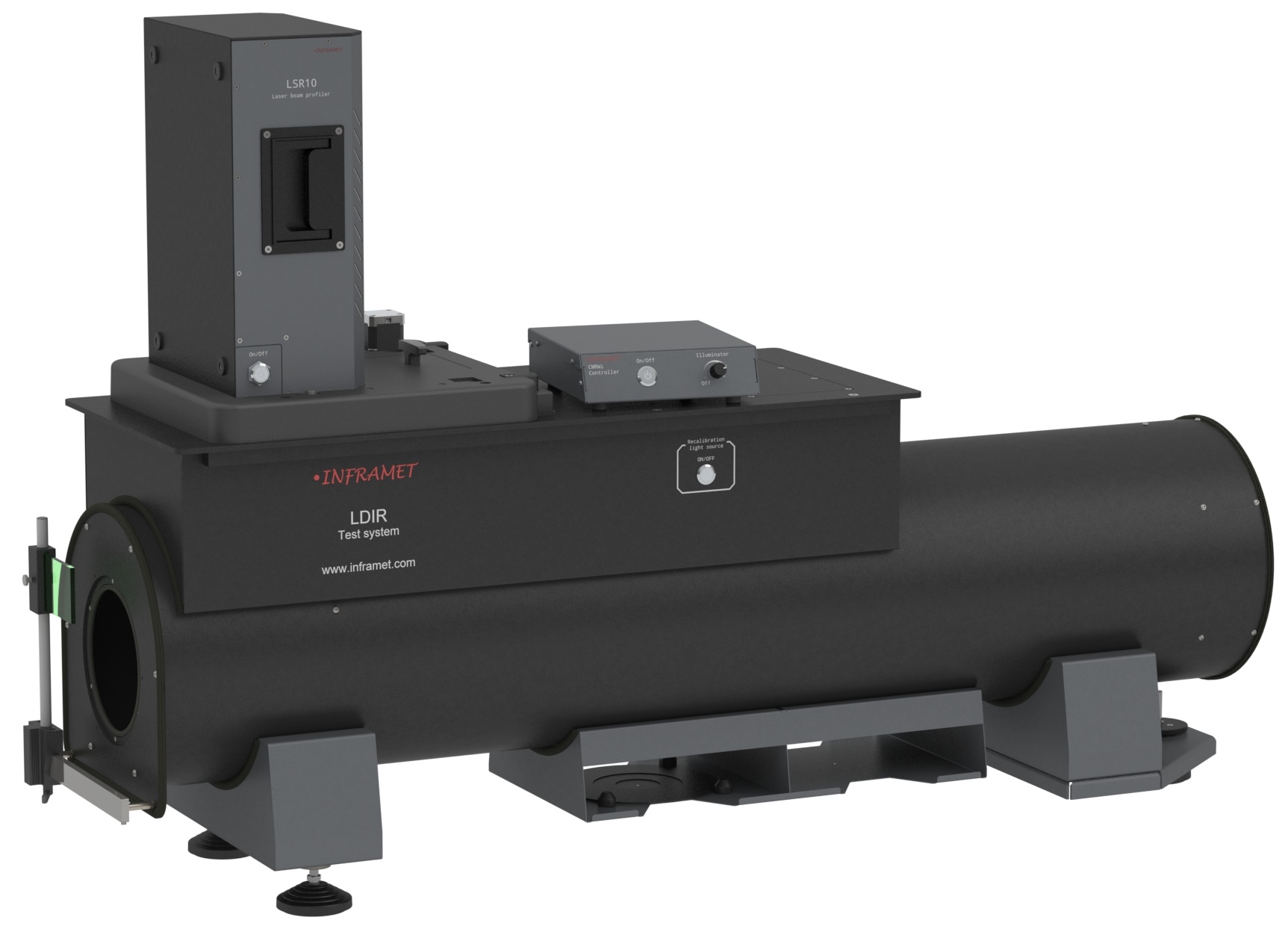

LDIR System for basic spatial tests of laser range finders, laser designators, laser pointers Measurement of divergence angle of lasers (laser range finders, laser designators, laser pointers). Optional boresight laser-laser or laser-imager.
LAR64 station for testing directional laser receivers Checking reactions to a simulated pulsed laser source of spatial/temporal regulated properties
LAFELD System for testing laser effectors at field conditions Measurement of mean power versus time, beam profile versus simulated distance and time, and divergence angle at field conditions
LWAL System for testing laser warning systems Calibrated directional light source capable at irradiate LWS at specified mode of laser light
