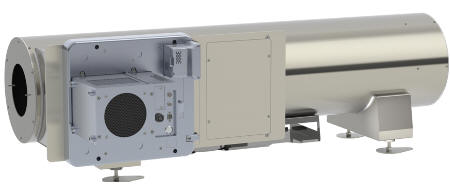

Typical Inframet test systems are optimized to be used in rooms of concentration of airborne particles met at typical laboratories. Such typical Inframet systems are frequently used also at clean-rooms of low/medium cleanliness. However, Inframet can deliver special versions of its test systems that are optimized to work in high end clean-rooms. The aim is to significantly reduce emission/absorption of air particles by the test system.

Typical design changes:

1. All fans in test system will be equipped with additional filters.

2. Thermoconductive silicon paste used to connect Peltier elements with metal radiator are replaced with theormoconductive Teflon plates.

3.  Special Peltier elements without silicon coating are to be used.

4. Silicon cables are replaced by cables made using nylon or poliamides.

5.  Painted metal parts are replaced for parts made from stainless steel/anodized aluminium (not valid for blackbody emitters),

6.  The test system will be delivered cleaned and outgassed.

Other changes suggested by customer can be added.
